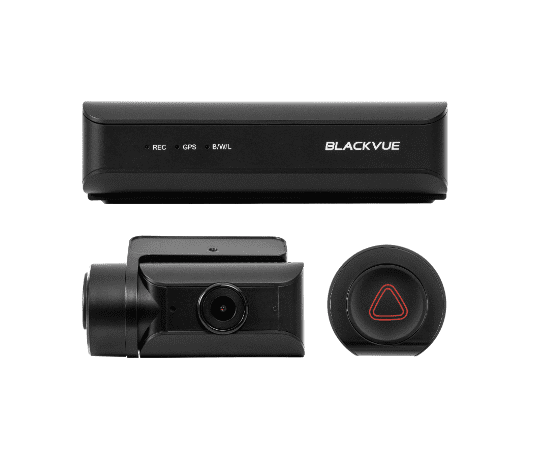

Blackvue DR770X BOX PRO

Description

*Exclusive 3-year BlackVue Manufacturer Warranty – any BlackVue DR770X Box Pro Dash Cam purchased from Dash Cam Australia qualifies for an exclusive 3-year BlackVue manufacturer warranty. After purchase, the BlackVue Dash Cam must be registered with BlackVue Australia for the exclusive 3-year camera warranty (accessories and Micro SD cards come with standard 12 month warranty).

**Buyer beware of unauthorised BlackVue sellers who are not exclusive to the 3-year BlackVue warranty.

BlackVue DR770X Box Pro: Redefining the Dash Cam Standard

In the ever-evolving dash cam market, BlackVue continues to lead the charge with innovative designs and cutting-edge technology. The DR770X Box Pro exemplifies this commitment, pushing the boundaries of what a dash cam can achieve.

Stealthy Design for Enhanced Security:

Unlike conventional dash cams that are mounted on the windshield, the DR770X Box Pro adopts a two-component system. The front and any additional cameras are discreetly connected to a central recording module. This module is designed to be hidden away, either in the glovebox, consol or under a seat, providing an extra layer of security against theft and tampering. By separating the recording module from the cameras, as well as having a lock and key tamper proof case,  the valuable memory card is securely tucked away, making it difficult for intruders to access and remove.

Customisable, Modular Design:

The precision engineering of the fully modular design allows the user to attach up to three cameras in total to the central recording unit. The standard package comes with 1 x Central Recording Unit and 1 x Front Windscreen Dash Cam. Users can purchase the following additional cameras:

ERC1-C : External Rear Camera Package. Includes Weatherproof Camera, 15m Cable [CC-15T], Cable Clips and Mounting Screws | 3 Year Warranty | RRP $349.00

RC1-C: Rear Camera Package. Includes Rear Camera, Mount, 6m Cable, Cable Clips and Mounting Tape | 3 Year Warranty | RRP $179.00

RC1-IR-C: Interior Infrared Camera Package. Includes Camera, Mount, 6m Cable, Cable Clips and Mounting Tape |  3 Year Warranty | RRP $209.00

Unmatched Recording Quality:

The DR770X Box Pro captures every detail on the road with Full HD 1080p clarity and recording at 60 Frames Per Second for smooth playback. The front camera boasts a Sony STARVIS sensor. This ensures great image quality even in challenging lighting conditions, delivering crisp footage day and night. The optional, additional cameras, all record in 1080p providing fantastic coverage all throughout and around your vehicle.

Efficient and Reliable:

BlackVue understands the importance of storage efficiency, especially with high-resolution recordings. The DR770X Box Pro employs the advanced HEVC (High Efficiency Video Coding) compression algorithm. This allows for significantly smaller file sizes without sacrificing image quality, maximising the recording capacity of your memory card. Additionally, the Parking Mode ensures continuous recording even when the vehicle is parked, providing 24/7 protection.

Seamless Connectivity and Cloud Integration:

BlackVue’s commitment to user experience is evident in the seamless connectivity options and Cloud integration features of the DR770X Box Pro. The dash cam supports fast 5GHz Wi-Fi, enabling effortless transfer of footage to your smartphone or other devices. Furthermore, the optional LTE Connectivity Module or third-party Wi-Fi hotspot allows for BlackVue Cloud connectivity. This secure cloud service enables remote live view, instant event notifications, two-way voice communication, GPS tracking, and cloud video backup, providing unparalleled peace of mind wherever you are.

Additional Features:

The DR770X Box Pro is packed with a host of additional features that further enhance its capabilities. The GNSS (Global Navigation Satellite System) receiver accurately records your vehicle’s location and speed, providing crucial evidence in the event of an incident. The intuitive voice guidance system keeps you informed about the dash cams status and functions. The sleek and compact design of the cameras ensures minimal obstruction to your view while driving.

The BlackVue DR770X Box Pro sets a new standard for dash cams, combining advanced technology, discreet design, and is a fully customisable soltuion. With its hidden recording module, 1080p 60FPS front camera, cloud connectivity, and a plethora of additional features, this dash cam provides the ultimate protection and peace of mind for drivers. Whether you’re a daily commuter, a frequent traveler, or a professional driver, the DR770X Box Pro is a powerful tool that will capture every journey with unparalleled clarity and reliability.

BlackVue DR770X BOX PRO Dash Cam Installation Options:

1. Cigarette Lighter Adapter (included): Easiest method, no technical expertise required. Just plug the cigarette lighter adapter into your vehicle Cigarette lighter socket. Only powers dash cam while car is on, no parking mode features.
2. Blackvue OBD-II Power Cable (optional extra): Simple, DIY, Plug and Play into your vehicle’s OBDii port for constant power to allow for parking mode. Easier than hardwiring. No need for costly professional installation. Not compatible with all vehicles such as Teslas and some EV’s.
3. Hardwiring kit (included): Most permanent solution, offers parking mode features. Most difficult option, requires familiarity with car electrical systems. Expect to pay between $200-$400 for professional installation.
4. Battery Pack ( optional extra): Simple, DIY, Plug and Play. Good option for those who don’t want to hardwire or have a smaller car battery. The battery charges when the car is on via the cigarette lighter charger and then gives power to the dash cam when the vehicle is off.  Can also be used to charge other devices. External battery can be hidden under passenger seat.

After you have successfully connected the right power cable, the only thing left to do is mount the dash cam to the windscreen and hide the cables through your vehicles trim and seal strips. You can use the supplied cable clips to help.

For a complete Dash Cam installation guide CLICK HERE

Note: Installation Video is for the discontinued 3-ch Box unit. This unit comes with 1 x camera however the same installation principles apply.

To avoid Hardwire Installation and for a simple, DIY install, we recommend the Plug and Play OBD II Power Cable which can be viewed here

Cloud-Compatible

GNSS, Wi-Fi and Optional LTE Module



Naturally heat-resistant

You can install the Box away from the sun. No more worrying about overheating.

Designed for stealth

Smaller cameras and secure recording box unit

Security-enhanced

Designed from the ground up to prevent tampering

LTE Connectivity Module (optional)

Add LTE connectivity to your BlackVue and turn your dash cam into a Wi-Fi hotspot.

Sleek interface

Built-in Speaker, Impact Sensor and Motion Detection



Free App and Viewer

BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Your videos are safe

BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Native Parking Mode

Let your BlackVue watch over your vehicle 24/7. Hardwiring cable included.

What’s Included:

Main unit	Front camera	SOS Button
External GPS
Main unit Cigarette Lighter power cable(3p)	Camera connection cable (1EA)	Main unit Hardwiring Power Cable (3p)
Micro SD card	Micro SD card reader	Quick Start Guide
Velcro strip	Pry tool	Main unit key
Spare screws for tamperproof cover (2EA), Allen wrench	Double sided tape for the Mounting Brackets	Cable Clips (6EA)



Specifications
Model Name	DR770X Box Pro
Channel	Included 1ch. Additional Channels Purchased Separately. Up to 3CH.
Highlights	Full HD, Cloud, Wi-Fi, Sony Sensors, External GPS and LTE Module
Product Dimensions	Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Camera Connection	Coaxial cable
Memory Support	microSD card up to 512GB
Recording Modes	Normal recording, Event recording (when the impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode	YES (hardwiring cable included). Optional OBD II cable available.
Parking Mode Event Voice Notifications	YES
Imaging Sensor	Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate	Front Full HD (1920×1080) @ 60 fps *Frame rate may vary during Wi-Fi streaming.
Video Codec	H.264 (AVC)
Image Quality and Bitrate Front/Rear	Front  Extreme: 16 Mbps Highest: 12  Mbps High: 10 Mbps Normal: 8 Mbps
Format Free	YES (Adaptive)
Event File Overwrite Protection	YES (up to 51)
SD Card Failure Alert	YES
Scheduled Reboot	YES
Video File Extension	MP4
Wi-Fi	Built-in (802.11 b.g.n)
Cloud Compatible	YES
GPS	External (Dual Band : GPS, GLONASS)
Microphone	Built-in
Speaker	Built-in
Impact Sensor	3-Axis Acceleration Sensor
LED Indicators	Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Front: Front & Rear Security LED
Button	EB-1 button : Press the button – manual recording.
Operation Temperature	-20°C – 70°C (-4°F – 158°F )
Storage Temperature	-20°C – 80°C (-4°F – 176°F )
High Temp Cut Off	Approx. 75 °C (167 °F)
Backup Battery	Built-in supercapacitor
Input Power	DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour	Normal Mode (GPS On/3CH) : Avg. 750mA/12V Parking Mode (GPS Off/3CH) : Avg. 600mA/12V * Approx.40mA increase in current when Interior Camera IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.
Certifications	Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC
Software	BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application	BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others	Adaptive Format Free File Management System
Bluetooth	Built-in (V2.1+EDR/4.2)
LTE	External (optional)
